Quarry Tile Floors: Restoring Breathability and Brightness

How do quarry tiles differ from other flooring types in your home?

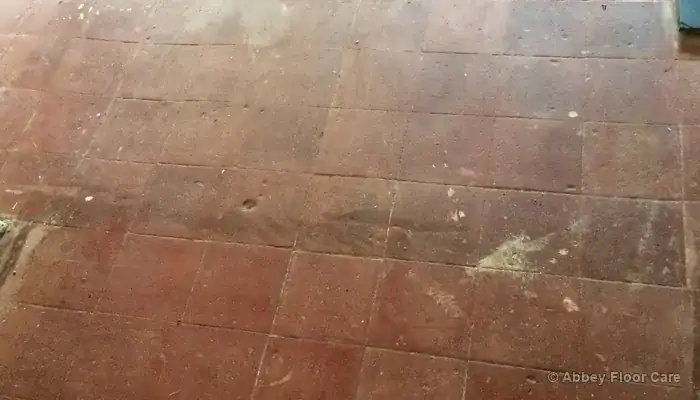

Understanding the Clay Body and Its Importance

Quarry tiles originate from dense, unglazed clay that is fired at high temperatures, resulting in a hard, moisture-active surface free from any protective glaze. Unlike ceramic or porcelain tiles, quarry tiles lack a sealing glaze, leaving the clay body vulnerable to foot traffic, cleaning products, and moisture from the outset. This continual absorption and release of moisture throughout the tile's life cycle is inherent to its design.

The clay body consists of fine mineral particles interspersed with voids that facilitate moisture vapour transmission. This process allows water vapour to rise from the subfloor through the tile and evaporate at the surface. In many historic UK properties, quarry tiles are laid directly on lime or compacted earth bases without a damp-proof membrane, ensuring that moisture movement is both continuous and intentional. Sealing this pathway does not protect the floor; instead, it disrupts its natural function.

The Significance of the Firing Process

The firing temperature affects the final density, colour, and porosity of a quarry tile. Lower firing temperatures yield a softer, more porous tile that readily absorbs liquids, often found in older Victorian and Edwardian homes in the UK. Conversely, higher temperatures result in denser tiles with tighter voids, offering better resistance to liquid absorption while remaining unglazed and moisture-active. Both types differ fundamentally from any glazed or polished flooring.

This production method ensures that the colour of quarry tiles is integral to their structure, running through the clay body rather than merely coating the surface. colour cannot be scrubbed away in the same manner that a painted finish can be removed. Over time, the surface texture may change due to abrasion, and colour can appear altered as contamination builds within the tile. A floor that appears persistently dark is likely holding ingrained contamination rather than showcasing its original clay hue.

The Impact of the Lack of Glaze

Glazed tiles possess a glass-like coating that repels liquids, resists staining, and keeps dirt at the surface for easy cleaning. Quarry tiles lack this protective layer; their open clay surface allows liquids to penetrate directly. Grease, cleaning residues, soil, and water all seep into the tile body instead of merely resting on the surface. Over time, these materials accumulate below the surface, making standard surface cleaning ineffective.

This is why the typical cleaning method — applying a product, mopping, and rinsing — yields diminishing results on quarry tiles. Cleaning products only address residues lying on the tile's surface while deeper layers of contamination continue to build. A floor mopped consistently for years can still retain decades worth of ingrained contamination because standard cleaning solutions do not penetrate deeply enough to eliminate it. Recognising this necessity for professional deep cleaning is key to maintaining these floors effectively.

This quarry tile hub provides comprehensive information about the entire lifecycle of these floors, from quarry tile basics to cleaning, restoration, and sealing guidance for all conditions.

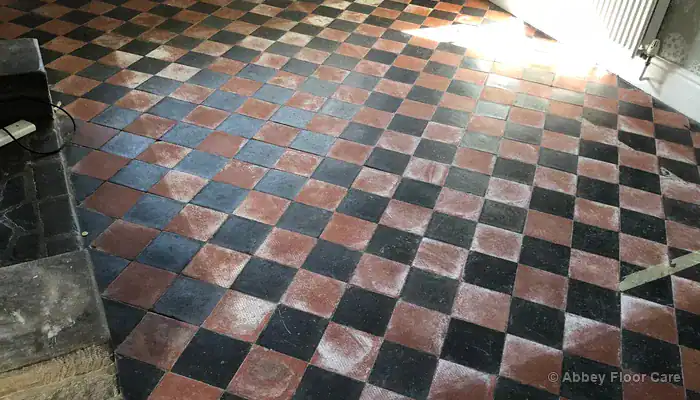

The Role of Moisture Vapour Transmission and Consequences of Blocking It

Moisture vapour transmission refers to the continuous upward movement of water vapour through the subfloor, tile, and into the room. In a properly functioning quarry tile floor, this process occurs invisibly and without causing damage. The floor breathes effectively, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When this transmission is obstructed, often due to a film-forming sealer that closes the tile's pores, moisture accumulates beneath the coating. This buildup leads to blistering, peeling, or discolouration of the surface. Salts deposited due to trapped moisture create the white crystalline deposits known as efflorescence. Additional cleaning efforts will not rectify this situation; the core issue lies in the blocked breathability, necessitating the removal of the coating to restore the tile's moisture movement.

Understanding Embedded Contamination and Its Invisible Build-Up

Embedded contamination consists of grease, soil, organic matter, and residues that have infiltrated the clay body over years of use. This contamination is not visible on the surface like a recent spill. Instead, it presents as a general darkening, a persistent dullness, or a floor that never appears clean despite cleaning efforts. Heavily contaminated floors may also feel slightly tacky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Every meal prepared, every muddy shoe, and every application of general cleaning product contributes a small amount of residue absorbed by the tile. Over a decade or two, this leads to a contamination layer that cannot be removed by products designed for surface application. Addressing it requires chemistry that penetrates into the clay body, typically through controlled alkaline cleaning with wet vacuum extraction, reaching the contamination where it resides, rather than merely treating the surface.

Why does the surface remain dirty even after cleaning?

If your quarry tile floor appears grimy post-mopping, the contamination has likely migrated into the clay body itself. This is when conventional cleaning techniques cease to yield visible results, and persisting with the same methods will not alter the outcome. The floor is not unresponsive because it is beyond repair; it is unresponsive because the cleaning is targeting the incorrect layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without removing the embedded layer. The floor may look temporarily cleaner right after mopping, but returns to its dull appearance within hours as the surface dries and the underlying layer re-emerges. This cycle can persist for years without any improvement in the underlying condition. The deep cleaning process for quarry tiles directly addresses the embedded layer instead of repeatedly treating the surface, resulting in immediate and lasting improvements.

What causes variations in the appearance of quarry tiles across properties?

Repetitive cleaning that yields no visible results is not indicative of a failure in technique; it signifies that soil has already penetrated below the surface layer. before diagnosing this issue, it is essential to understand why two quarry tile floors in similar conditions can exhibit vastly different appearances. Variations in manufacturing play a significant role in both appearance and performance.

Quarry tiles fired at higher temperatures result in denser tiles with tighter clay structures. These tiles are slower to absorb liquid, maintain their colour under foot traffic more consistently, and resist surface abrasion better over time. In contrast, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and exhibit the effects of embedded contamination sooner. Both types remain unglazed and moisture-active, but the rate at which problems develop varies considerably.

Why does dirt penetrate into the tile instead of remaining on the surface?

Capillary action is the reason that grease and soil are drawn into a quarry tile rather than lying on the surface. The open clay structure facilitates the inward movement of liquid contamination under normal foot traffic. Each step exerts pressure that drives liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all enter the tile body through this process. Once inside, they are inaccessible to surface cleaning.

Over time, the voids within the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disrupts surface contamination but fails to reach what lies beneath. The floor becomes slower to absorb new contamination as upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue involves using correctly formulated pH-neutral cleaning chemistry, steering clear of detergents that leave behind their own residues, alongside removing grit before wet mopping to prevent surface abrasion from worsening the contamination problem.

Why do common cleaning products become ineffective over time?

If your usual floor cleaner showed results for the first year or two but now seems ineffective, it is likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are designed to tackle residue at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once embedded, these products only maintain surface cleanliness without addressing the underlying issue.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-modifying agents that the tile absorbs alongside the soil they are meant to eliminate. This accelerates the residue cycling process and can lead to a surface that feels slightly sticky or appears consistently dull regardless of recent cleaning. The chemistry required to penetrate the clay body rather than merely the surface employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can using the wrong sealer worsen your floor's condition?

Applying a film-forming sealer to a moisture-active quarry tile floor does not provide protection; it traps the moisture that the floor needs to release. Film-forming products create a physical barrier across the tile's pores. While suitable for modern glazed tiles, this approach is detrimental for unglazed quarry tiles resting on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Properly sealing a quarry tile floor involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may appear effective. within months, moisture vapour accumulating beneath the coating begins to result in blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from the trapped moisture manifest as white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, which exacerbates the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission requires professional intervention. An impregnating sealer, one that penetrates the tile body rather than resting on top, allows moisture to move while safeguarding the internal structure from further contamination.

What are the signs that indicate quarry tile floors are failing?

White powder on the tile surface, inconsistent finishes that reappear after cleaning, and coatings that peel without clear cause are interconnected symptoms of the same underlying issue. Each indicates a specific stage in the deterioration process, and recognising these signs helps identify the floor's current condition.

Efflorescence, the white crystalline or powdery deposit that occurs when moisture carries dissolved salts to the surface, signifies active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears within days of being cleaned.

Salt migration produces a similar visible outcome but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this results in the tile surface appearing progressively lighter in affected areas. Sealer failure can be seen through peeling, mottling, or uneven sheen, indicating areas where the coating has separated from the tile.

What does a well-maintained quarry tile floor require?

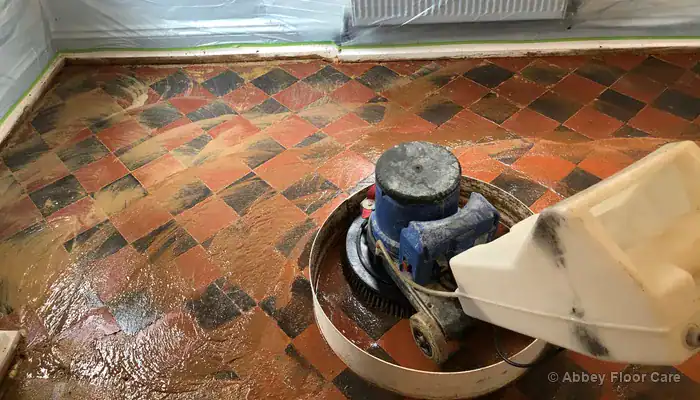

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most critical factor is employing a pH-neutral cleaner specifically designed for breathable natural tiles — avoiding general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Choosing the wrong product can restart the residue cycling process from day one.

Equally important is the removal of grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, hastening surface abrasion in the upper clay layer. Dry sweeping or vacuuming prior to any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains the tile's internal protection without causing surface residue buildup.

When is maintenance insufficient for your floor's needs?

Persistent darkening that does not improve with proper cleaning products, white salts that reappear shortly after removal, and coatings that fail repeatedly indicate that the floor requires professional evaluation rather than continued maintenance.

Use the following sequence to evaluate your floor's current condition:

1. Clean the floor with a correctly formulated pH-neutral product and allow it to dry thoroughly. If the darkening returns within 48 hours and the floor appears unchanged post-cleaning, the contamination is embedded below the surface.
2. After clearing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signifies a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or display an uneven sheen in high-traffic areas, the product was likely incompatible with the floor's moisture movement profile, requiring professional removal before any further treatment.

What steps should you take next based on your floor's condition?

Every issue with quarry tiles leads to a specific part of the restoration system, and the appropriate starting point hinges on the current state of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor exhibits white deposits, inconsistent finishes, or failing coatings, the restoration pathway should be followed: quarry tile restoration details the professional remediation process.
