Victorian Tiles Restoration for Worn Minton Floors

Understanding the Persistent Dullness of the Walsall Minton Floor After Extensive Cleaning

Evaluating the Initial Condition of the Victorian Tiles

If your Victorian tiles continue to appear lacklustre despite numerous cleaning attempts, it is likely due to trapped contaminants and structural movement rather than mere surface dirt. The Walsall Minton hallway exhibited a worn surface, muted colours, loose tiles, an outdated sealer, and residue embedded within the clay body. Consequently, conventional mopping primarily redistributed grime rather than effectively removing it. This scenario firmly positioned the project within the realm of restoration, as opposed to general cleaning methods.

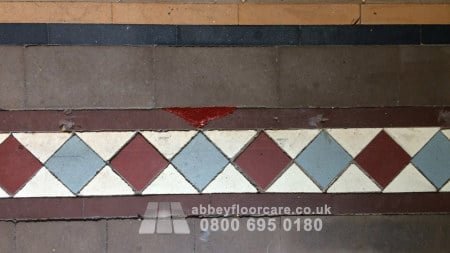

The Walsall hallway retained its status as an original patterned entrance floor, yet the surface failed to display the distinct contrasts of red, buff, cream, and dark clay typically associated with a restored Minton layout. Foot traffic had driven fine soil into the tile surface, while the old topical sealer had dulled the finish. Additionally, the grout lines had darkened due to surface residue accumulation. A similar situation afflicted the Minton tile floor restoration in Ovington, where earlier coverings and compacted dirt obscured the original floor until restoration revealed the intricate pattern.

Walsall boasts a significant number of late Victorian and Edwardian terraced houses, alongside interwar semi-detached homes and post-war housing estates. Much of the older housing stock originates from the late 19th and early 20th centuries, making Victorian tile floors particularly prevalent in entrances, porches, pathways, and, occasionally, kitchens within these older properties. Situated in the West Midlands metropolitan county, Walsall falls under the jurisdiction of Walsall Council, with most central areas designated by the WS postcode districts. The town's rich industrial heritage and preserved period housing contribute to the presence of many original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

Identifying Hidden Residues Contributing to the Dull Appearance

The presence of trapped residues explained why the hallway appeared fatigued even after years of cleaning. The porous clay surface allowed dirt, old cleaning solutions, waxes, and coating residues to settle beneath the visible layer of the tiles. Although fresh water could moisten the contamination, it was unable to lift it away. This illustrates the practical implications of tile porosity on an aged Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat appearance despite cleaning.

Furthermore, the old topical sealer had created an uneven barrier across the floor. Coatings that once provided a temporary shine can degrade into sticky residues, trapping grime and creating darker patches in areas where the finish has worn thin due to foot traffic. Thus, the restoration process had to meticulously strip away the old sealer, release the surface residues, thoroughly rinse the floor, and extract the resulting slurry with a wet vacuum before considering any protective finish.

Contamination from carpet adhesives was also a concern, given that many Walsall hallway tiles have been covered with carpet, linoleum, or vinyl at various times. A hidden layer can be concealed beneath thick glue, bitumen residues, tape remnants, and staining that only becomes apparent once the covering is removed. In this case, no significant adhesive presence dominated the hallway, but the inspection still searched for brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can alter the restoration sequence.

Understanding the Impact of Moisture Behaviour and Tile Stability

The characteristics of old permeable sub-floors influenced the cleaning and sealing methods applicable to the Walsall floor. Excess water can penetrate the porous clay, reach the underlying bedding, and cause tile movement, lifting, dampness, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour necessitated a reliance on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Loose tile movement was critical to consider since water and slurry can infiltrate beneath raised edges and into gaps. Once slurry dries below the tile surface, the floor can continue to appear dirty from the edges even after the main surface has been cleaned. Therefore, the restoration process treated the floor as a cohesive historic assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures all needed to function harmoniously.

During the survey, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement levelling compound backfill, and previous repair infills were also taken into account. Cement levelling can disrupt the original tile pattern, obstruct the visual continuity, and leave a repaired hallway looking patchy rather than seamless. This Walsall floor primarily required local resetting rather than extensive replacement work, but assessing the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Clarifying the Reasons This Project Required Restoration

This undertaking fell under the category of restoration because mere cleaning would not rectify loose tiles or address the failures of old coatings. The work needed to tackle compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could occur. A comparable restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints also required reintegration into the overall floor layout before achieving a visually coherent result.

The original Minton pattern had not vanished; rather, it was visually obscured. Restoration successfully eliminated the old products and ingrained dirt that muted the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was expected to exhibit a significantly improved appearance, and a professionally restored and properly sealed Victorian tile floor is notably easier to clean and maintain compared to a worn or improperly treated floor.

Ongoing maintenance is crucial for safeguarding the restored clay surface by removing dry grit before wet mopping and using a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are detailed in the Victorian and Minton tile cleaning hub, which provides support for the aftercare decisions made in this Walsall case study.

What Factors Contributed to the Loose Tiles and Deep Soil Making This Hallway a Restoration Project?

The presence of loose Minton tiles and deep soil transformed this worn hallway into a restoration project because the underlying issues lay beneath the visible surface. The homeowner observed dull colours, dark joints, and unstable areas, yet the root causes were movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. To rectify these issues, structural re-bedding was essential before deep cleaning could effectively restore the floor to an even state.

The extraction of slurry was crucial, as loosened soil, rinse water, mineral salts, and old coating residues needed to be removed from the tile pores rather than allowed to re-dry within them. The restoration employed controlled water, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without overly saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilisation and breathable protection are components of the same historical flooring restoration sequence.

Stabilising loose tiles is a prerequisite before deep cleaning can uniformly restore the floor.

What Approaches Were Taken to Stabilise the Walsall Hallway Without Causing Damage to the Original Tiles?

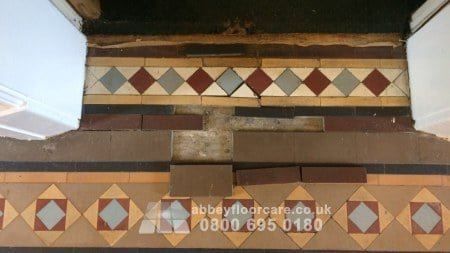

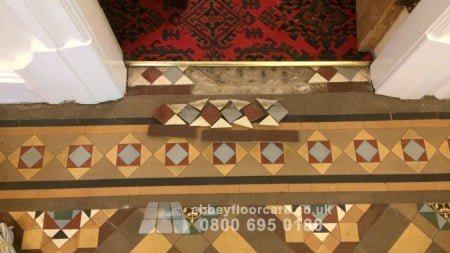

Scrubbing a loose Minton hallway prior to stabilising it poses a risk of driving slurry beneath the tiles, potentially damaging fragile edges. In this case, the loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to maintain the original layout's integrity. This methodology ensured that repairs remained part of the restoration workflow rather than evolving into a separate repair narrative.

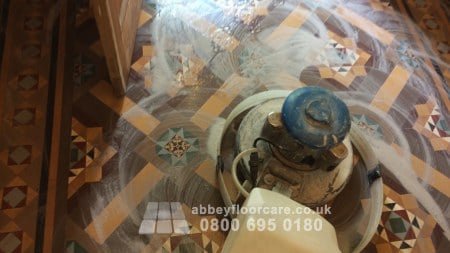

Adequate surface cleaning would have eliminated some visible grime, but it would not have addressed the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration utilised an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In instances where acid wash neutralisation was necessary due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation safeguarded the original tiles, as the process was dictated by the floor's condition rather than imposing a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the need for replacement tile matching were all considered to ensure that the pattern exhibited continuity. However, this hallway predominantly required resetting, thorough cleaning, and breathable protection. This sequence restored the floor's appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How the Restored Floor Achieved Clarity While Retaining Its Historic Character

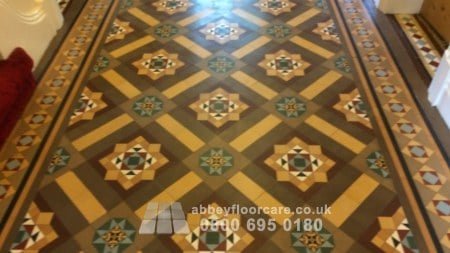

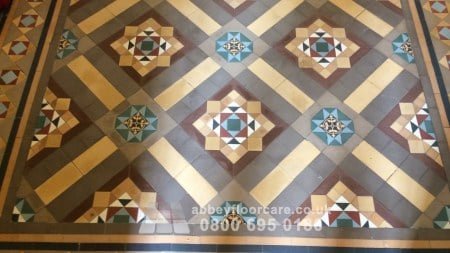

If your Victorian tiles display colours concealed beneath layers of dull wear, restoration should enhance definition without obliterating the authentic age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were meticulously removed from the clay surface. The original Minton pattern appeared more pronounced, while genuine signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have eliminated original fired clay from the tile surface. Dishing represents permanent wear accrued over decades of footfall and should not be viewed as a failure when the finished floor retains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, was buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

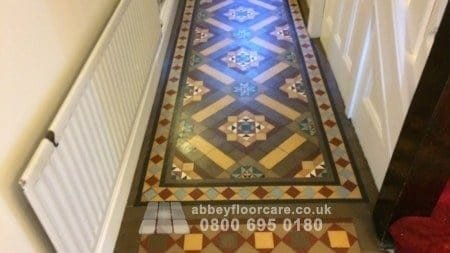

The completed hallway exhibited a significantly improved appearance compared to its pre-restoration state and, in many respects, surpassed how it might have appeared under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, employing neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where to Find Further Insights on Common Victorian Tile Issues

Understanding similar Victorian tile issues requires a broader context since residue, loose sections, faded colours, and missing pieces seldom occur in isolation. The Walsall hallway exemplifies why historic floors necessitate a comprehensive restoration perspective: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When dealing with broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, it is crucial to source and match replacement tiles with care. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work blends seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains the key factor in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, employ a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and assess sealing processes before the surface begins to absorb spills rapidly again. Simple yet vital.
